SMRS10-21321311S-10
€351.80
Tax excluded

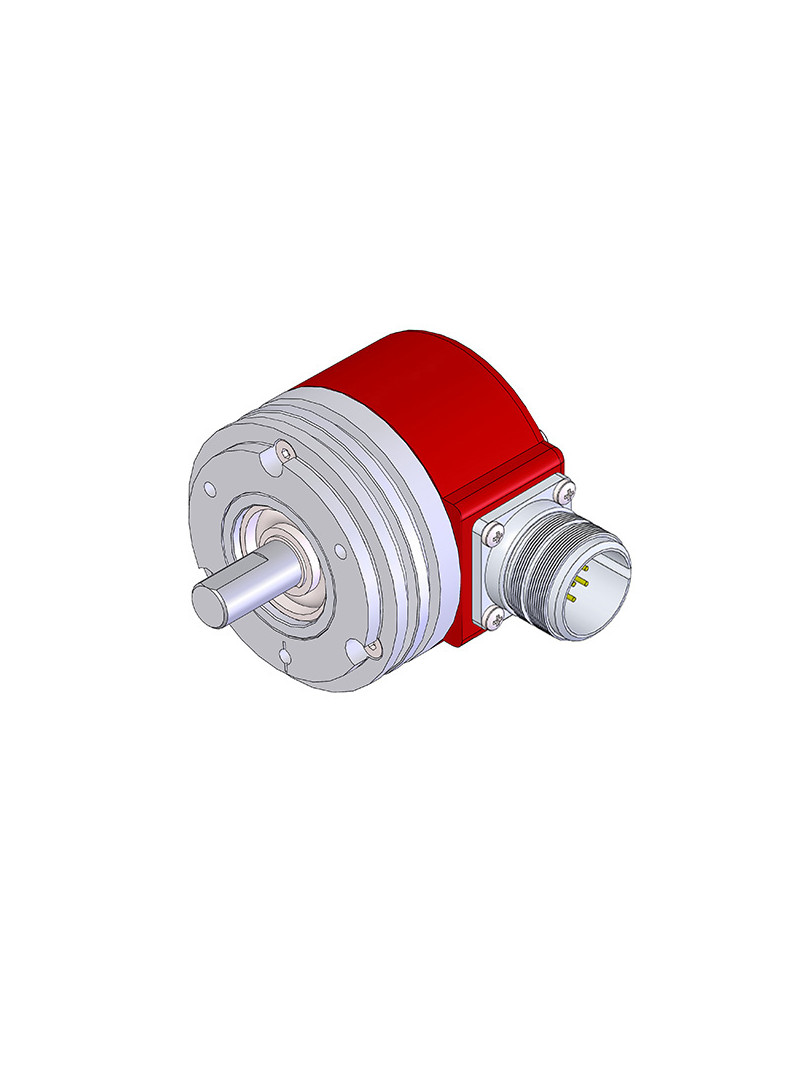

SINGLETURN ABSOLUTE SSI SOLID SHAFT ENCODER
Original Parts
Direct from Manufacturer
Free shipping
On orders over 500€
Fast Delivery
24-48h
Secure Payment
SSL Security
- Singleturn resolution 10 bits SSI Gray CW
- External diameter 58 mm
- Solid shaft Ø 10 mm
- Operating temperature range up to +100°C
- Protection class IP65 according to DIN EN 60529
- Connection by radial M23 12p connector
SMRS1021121312S17
Data sheet
- Shaft Type
- Solid Shaft
- Shaft
- Ø10x20mm
- Connection
- Radial cable
- Housing Material
- Aluminium
- Shaft Material
- Stainless Steel
- Bearings
- Ballraces
- Bearings Lifetime
- 1x10^10 rev.
- Maximum number of revolutions permitted mechanically
- 6000 rpm
- Protection against dust and splashes according to DIN EN 60529
- IP65
- Rotor inertia moment
- ≤ 3x10^-6 Kgm²
- Starting torque at 20°C (68°F)
- ≤ 0.02 Nm
- Maximum load permitted on axial shaft
- 40 N
- Maximum load permitted on radial shaft
- 60 N
- Weight aprox.
- 0.5 Kg
- Operating temperature range
- -10°C to +100°C
- Vibration according to DIN EN 60068-2-6
- 100 m/s² (10Hz...2000Hz)
- Shock according to DIN EN 60068-2-27
- 1000 m/s² (6ms)
- Interface
- SSI
- Singleturn resolution
- 10 bits
- Power Supply / Electronic output
- 4...30 VDC
