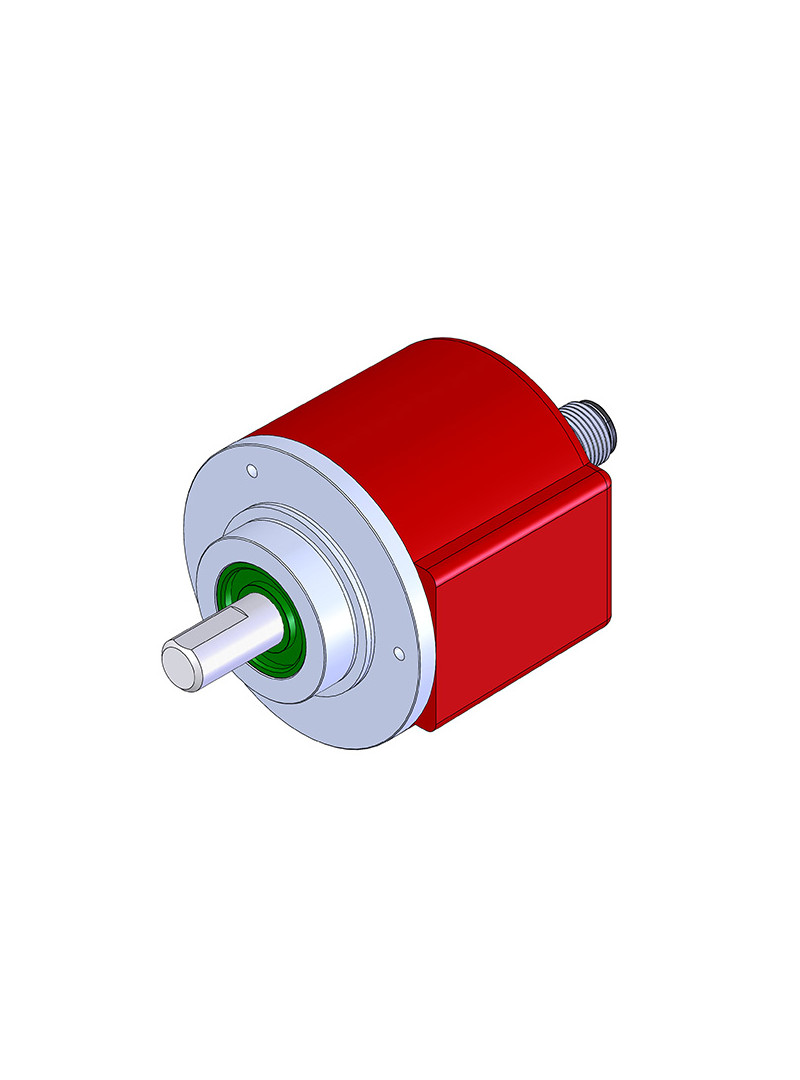

Data sheet

Shaft Type

Solid Shaft

Shaft

Ø10x20mm

Connection

Radial Connector

Cover Material

Zamak

Housing Material

Aluminium

Shaft Material

Stainless Steel

Bearings

Ballraces

Bearings Lifetime

1x10^10 rev.

Shaft fixation

None

Maximum number of revolutions permitted mechanically

6000 rpm

Protection against dust and splashes according to DIN EN 60529

IP67

Rotor inertia moment

30 gcm²

Starting torque at 20°C (68°F)

≤ 0.03 Nm

Maximum load permitted on axial shaft

40 N

Maximum load permitted on radial shaft

80 N

Weight aprox.

0.5 Kg

Operating temperature range

-20°C to +80°C

Vibration according to DIN EN 60068-2-6

100 m/s² (10Hz...2000Hz)

Shock according to DIN EN 60068-2-27

1000 m/s² (6ms)

Pulse revolution

360 PPR

Output Signals

AB

Power Supply / Electronic output

11...30 VDC / Line driver differential Push-Pull 11...30 VDC
